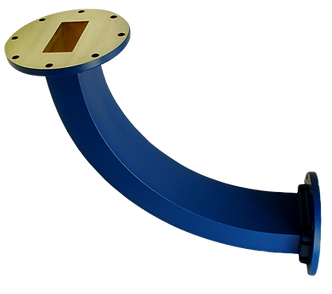

CML Waveguide Assemblies are build to order products. We can manufacture straight, E-plane, or H-plane assemblies in lengths to suit your system needs. Assemblies can ablso be manufactured with cooling channels should your system require additional cooling due to power level.

WAVEGUIDE ASSEMBLIES

PART NO.
WR SIZE
FLANGE IN
FLANGE OUT
LENGTH
1015-03
WR340
CPR-340G
CPR-340G
3.94”
1020-02
WR284
MERDINIAN (M)
MERDINIAN (F)
8.5”
1020-03-01
WR284
CPR-284G
CPR-284F
200mm
1020-03-02
WR284
CPR-284G
CPR-284F
300mm
1020-03-03
WR284
CPR-284G
CPR-284F
500mm
1220-04
WR284
CPR-284F
CPR-284F
39.37”
1020-05
WR284
MERDINIAN (M)
MERDINIAN (F)
6”
1020-14
WR284
CPR-284F
CPR-284F
28.996”
1020-17
WR284
LIL
CPR-284F
39.37”
1020-18
WR284
CPR-284F
CPR-284F
950mm
1020-19
WR284
CPR-284F
CPR-284F
1500mm
1020-20, Rev. 1
WR284
MERDINIAN (M)
MERDINIAN (F)
48”
1020-21, Rev. 1
WR284
MERDINIAN (F)
MERDINIAN (F)
14.75”
1030-00
WR187
RIKEN-DESY
RIKEN-DESY
76.43”
1030-01
WR187
RIKEN-DESY
RIKEN-DESY
13.89”
1220-01
WR284
MERDINIAN (M)
MERDINIAN (F)
10.34”
1220-02
WR284
CPR-284F
CPR-284F
8.3”
1220-03
WR284
MERDINIAN (M)
MERDINIAN (F)
5.25”
1220-04
WR284
MERDINIAN (M)
MERDINIAN (F)
9.5”
1220-05
WR284
LIL
LIL
5.9”
1220-06
WR284
LIL
LIL
10.3”
1220-07-01
WR284
LIL
MERDINIAN (M)
22.5”
1220-07-02
WR284
LIL
MERDINIAN (M)
23.5”
1220-07-03
WR284
LIL
MERDINIAN (M)
24.5”
1230-02
WR187
RIKEN-DESY
RIKEN-DESY
5.1”
1420-00
WR284
MERDINIAN (M)
MERDINIAN (F)
10.4”
1420-01
WR284
MERDINIAN (M)
MERDINIAN (F)
10.4”
1420-02
WR284
CPR-284F
CPR-284F
10.1”
1420-03
WR284
CPR-284F
CPR-284F
10.1”
1420-04
WR284
MERDINIAN (M)
MERDINIAN (F)
8.9”
1420-05
WR284
MERDINIAN (M)
MERDINIAN (F)
8.2”
1420-06
WR284
LIL
LIL
23.4”
1420-07
WR284
CPR-284F
CPR-284F
160mm
1430-00
WR187
RIKEN-DESY
RIKEN-DESY
7”
1430-01, Rev. 1
WR187
RIKEN-DESY
RIKEN-DESY
15.2”
1620-00
WR284
MERDINIAN (M)
MERDINIAN (F)
12”
1840-00
WR137
CPR-137G
CPR-137F
200mm
1845-00
WR112
MERDINIAN (M)
MERDINIAN (F)
12”
1920-01
WR284
CPR-284G
CPR-284G
8”
1920-02
WR284
LIL
LIL
12”
